5Mp USB Camera for Computer 3.6Mm Lens MJPEG 5Megapixel Industrial Machine Vision HD USB Camera Module for Windows Linux Android System,Mini UVC USB2.0 Webcam Board for Laptop, PC, Jetson Nano
5Mp USB Camera for Computer 3.6Mm Lens MJPEG 5Megapixel Industrial Machine Vision HD USB Camera Module for Windows Linux Android System,Mini UVC USB2.0 Webcam Board for Laptop, PC, Jetson Nano
Regular price
$91.99
Sale price
$91.99
Regular price
$0.00
Unit price
per
Couldn't load pickup availability
5Mp USB Camera for Computer 3.6Mm Lens MJPEG 5Megapixel Industrial Machine Vision HD USB Camera Module for Windows Linux Android System,Mini UVC USB2.0 Webcam Board for Laptop, PC, Jetson Nano
Regular price
$91.99
Sale price
$91.99
Regular price
$0.00
Unit price
per
- 3.6mm fixed lens with long cord usb cable webcam camera module
- Omivision sensor,5megapixel HD high resolution can used in high leval video system for personal or industrial
- Free driver,plug and play directly installation anywhere for android,linux,windows pc system
- Good to use for high leval products image intergation or housekeeping
- compatible with ELP raspberry pi, opencv and many other camera software and hardware to display or record
Product description
ELP 5megapixel wide angle usb camera with 3.6mm wide angle lens for computer,pc,laptop.

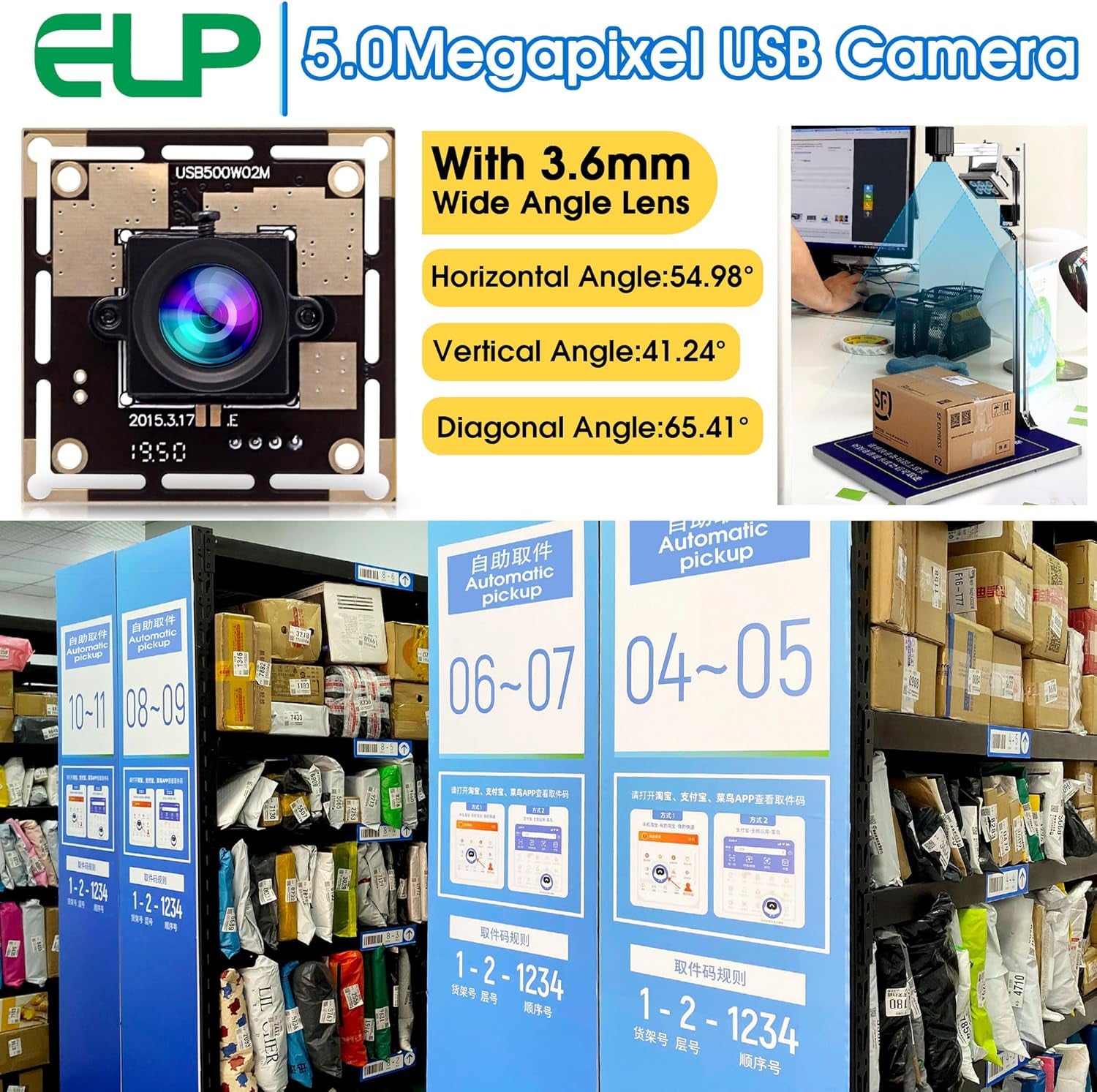

ELP-USB500W02M-L36 (3.6mm wide angle lens, HFOV about 65.41degree)

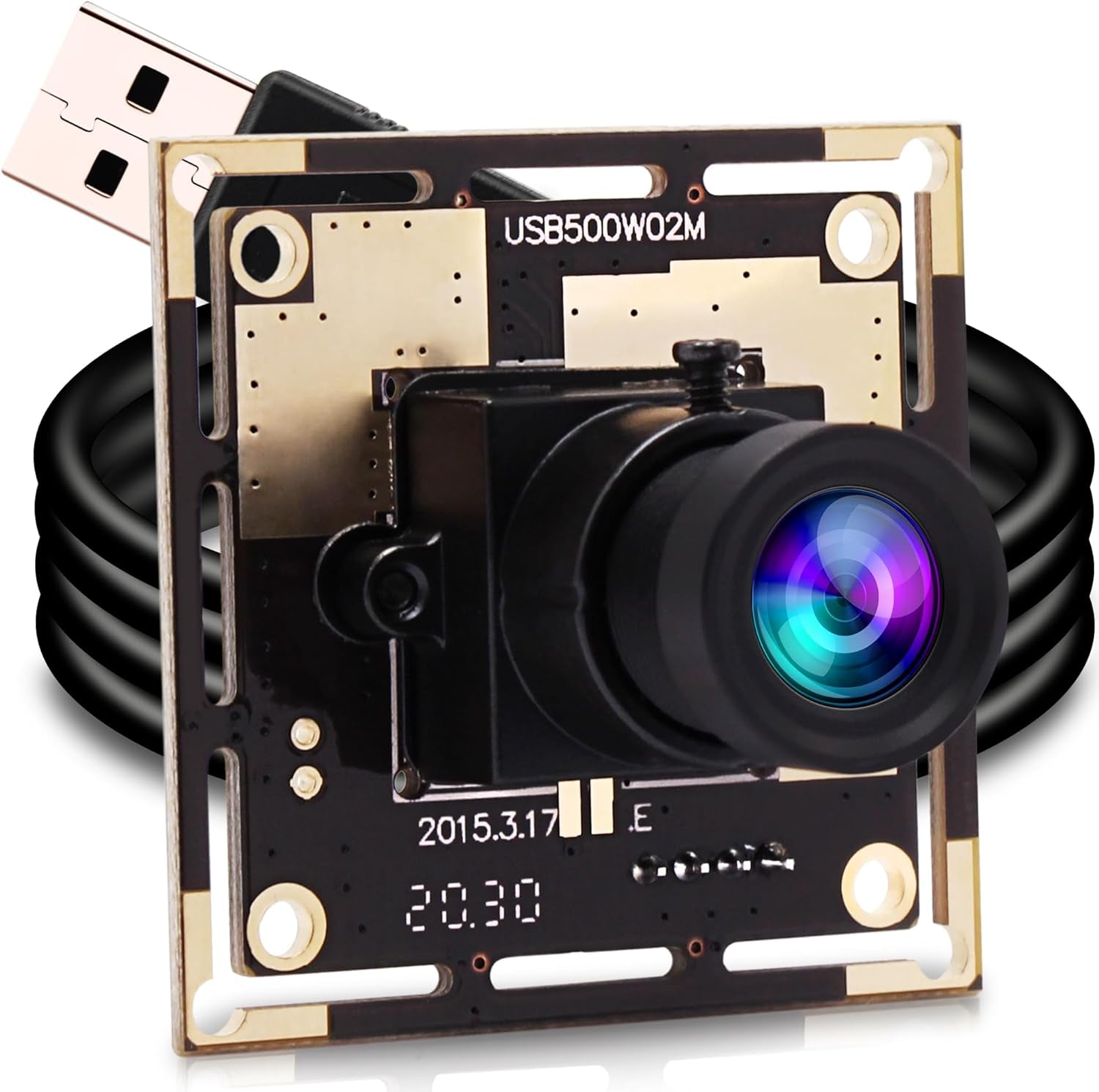

- Based on 1/4" 5MP CMOS OV5640 image sensor, Fixed focus, 3.6mm wide angle lens, UVC compliant USB 2.0 cameras. This is a mini webcam module, Max resolution 5 Mega pixel 2592 x 1944 output, with 38*38/32*32mm mini board size. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. Small outline and thin profile for embedded machines, Ultra HD resolution meets your request for higher quality video still pictures resolution.
Super mini usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
SPECIFICATIONS
- Camera
- Sensor: 1/4” OV5640
- Resolution: 5MP 2592H x 1944V
- Frame Rate:
- 2592x1944 MJPEG 15fps YUY2 3fps
- 2048x1536 MJPEG 15ps YUY2 3fps
- 1600x1200 MJPEG 15fps YUY2 3fps
- 1920x1080pixels MJPEG 15fps YUY2 3fps
- 1280x1024MJPEG 15fps YUY2 7.5fps
- 1280x720 MJPEG 30fps YUY2 7.5fps
- 1024x768 MJPEG 30fps YUY2 15fps
- 800x600 MJPEG 30fps YUY2 30fps
- 640x480 MJPEG 30fps YUY2 30fps
ELP 5MP Embedded USB Webcam Camera Module With wide angle Lens for Industrial, Medical Equipment, Bar Code Scan, etc.
- Lens
- Field of View (FOV)： H= 65.41°(V)
- Lens Mount: M12
- Focusing Range: 2inch (5cm) to infinity
- IR Sensitivity: Integral IR filter, visible light only
- Functionality and Compatibility
- Adjustable Parameters: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, and Mac with UVC
- Power
- Power Supply: DC 5V
- Working Current: MAX 200mA
- Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C)
- Dimension: 38*38mm/32*32mm
- Cable Length: 3.3ft (1M)
ELP 5MP usb camera module high compatibility usb webcam board 1944p mini web cam CMOS OV5640 webcamera work with most os for multiple applications
5megapixel Ultra Clear
Max Resolution:
- 2592(H) X 1944(V) 5Megapixel
5megapixel high pixel technology for sharp image and accurate color reproduction.

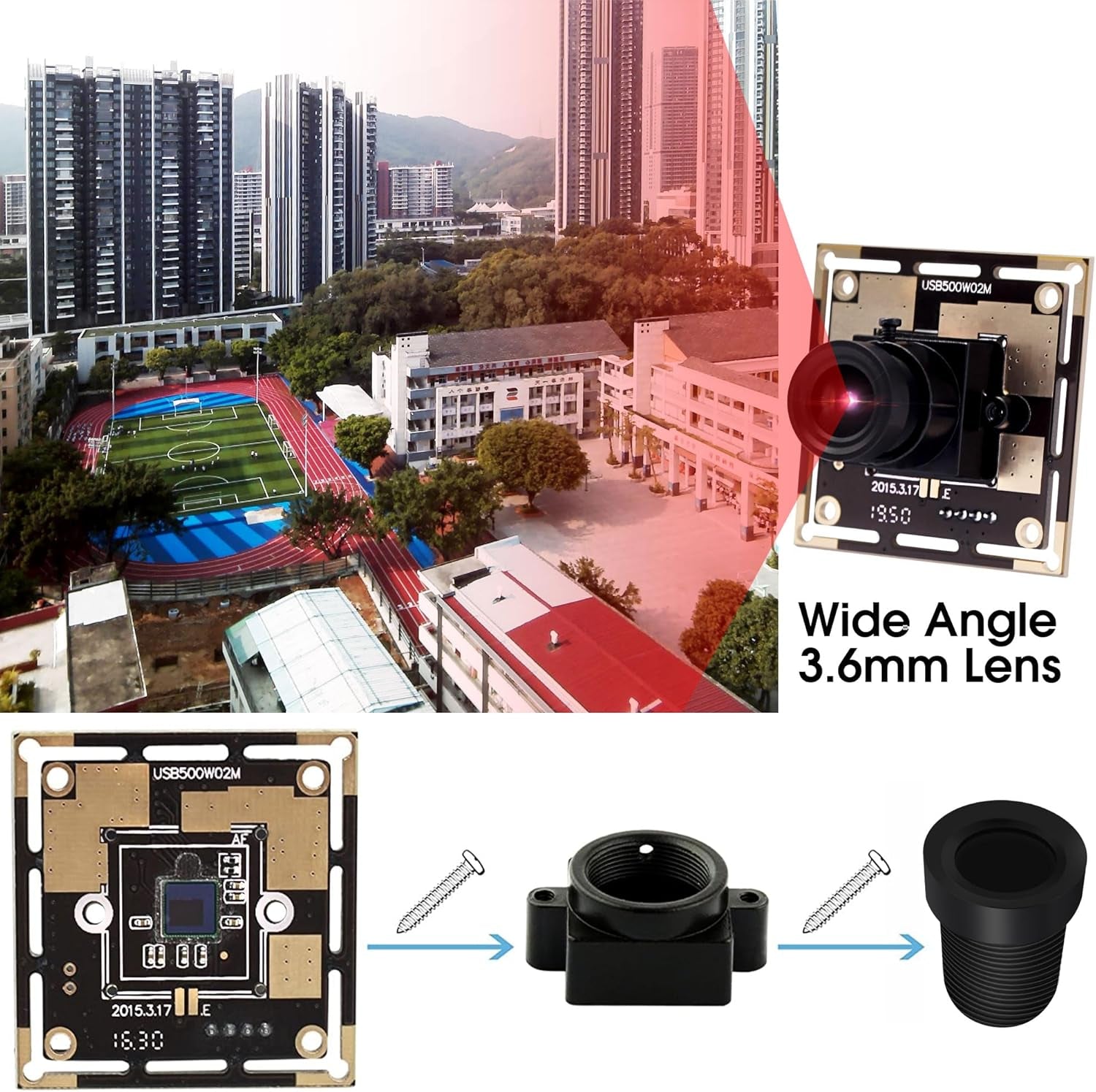

Wide Angle 3.6mm lens:
Wider angle of view:
- Mini USB camera with wide angle 2.1mm lens, FOV is about 65.41degree(V).
Mini Size:
38*38/32*32mm Optional:
- Super small and Mini Size for your lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision.

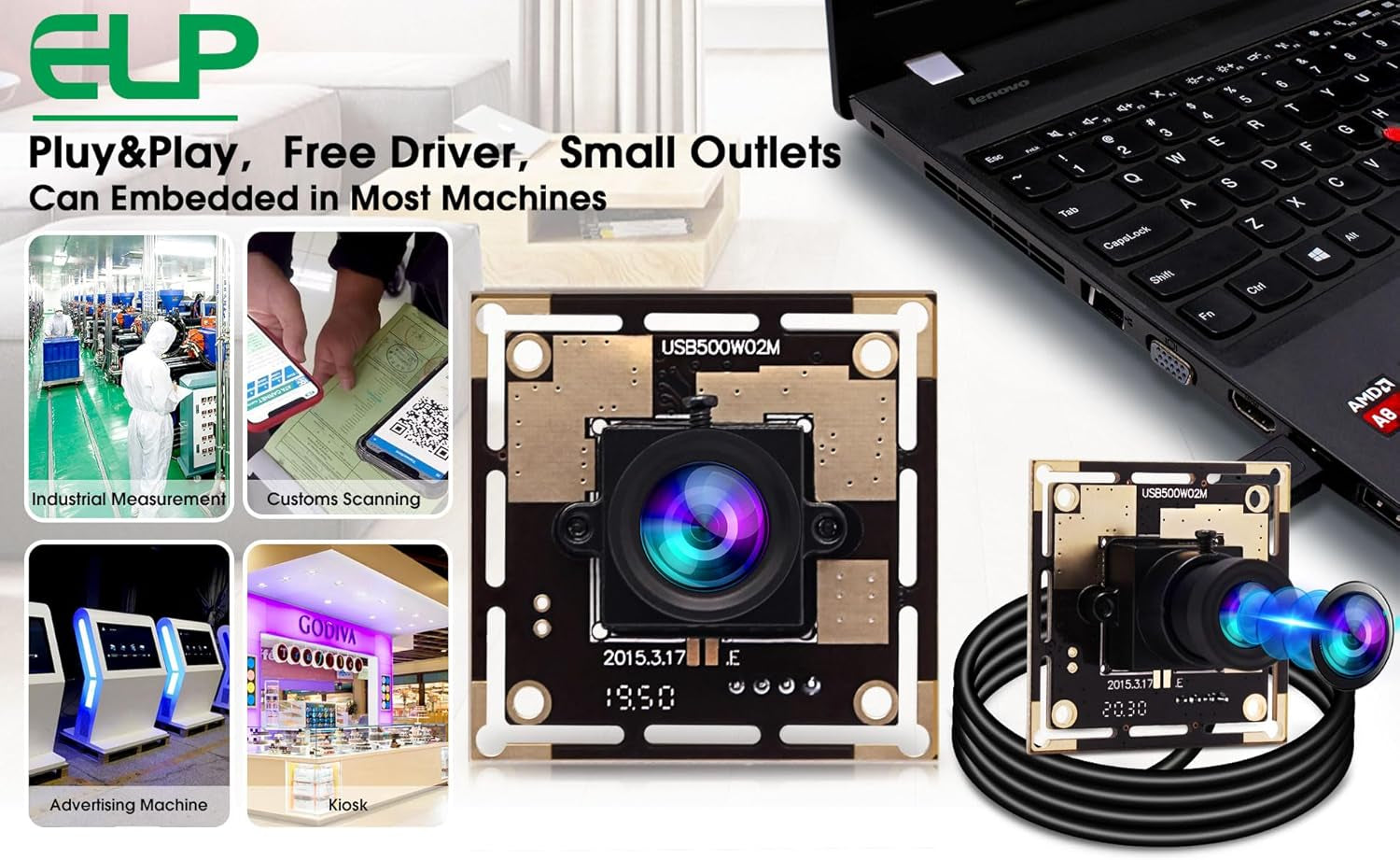

Plug and play,free driver,UVC compliant, lower power consumption, ideal for portable equipment.

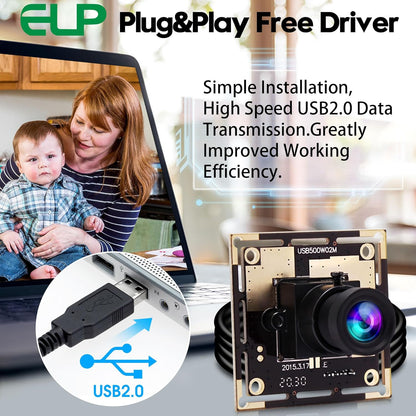

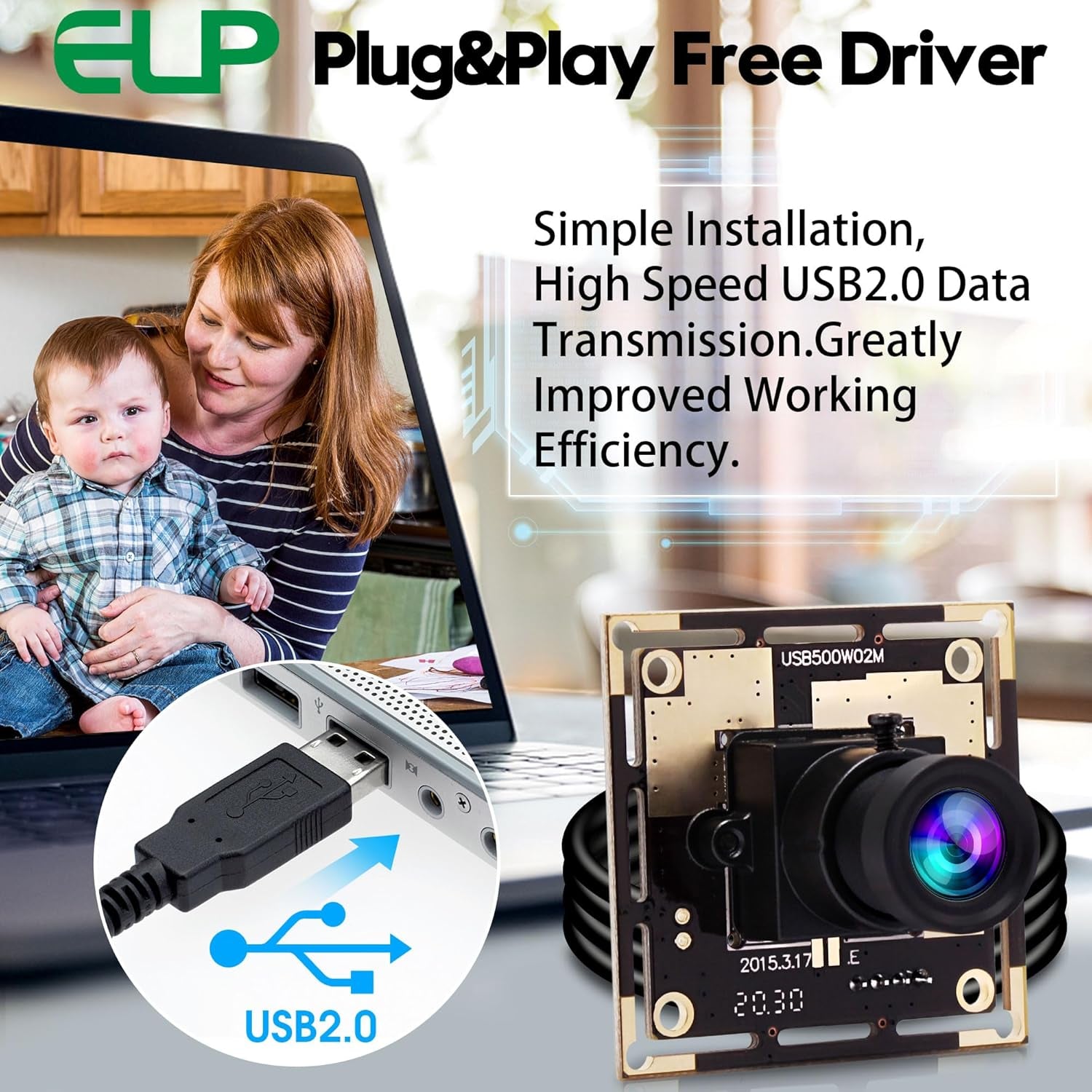

Plug and Play/Free Driver
- UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

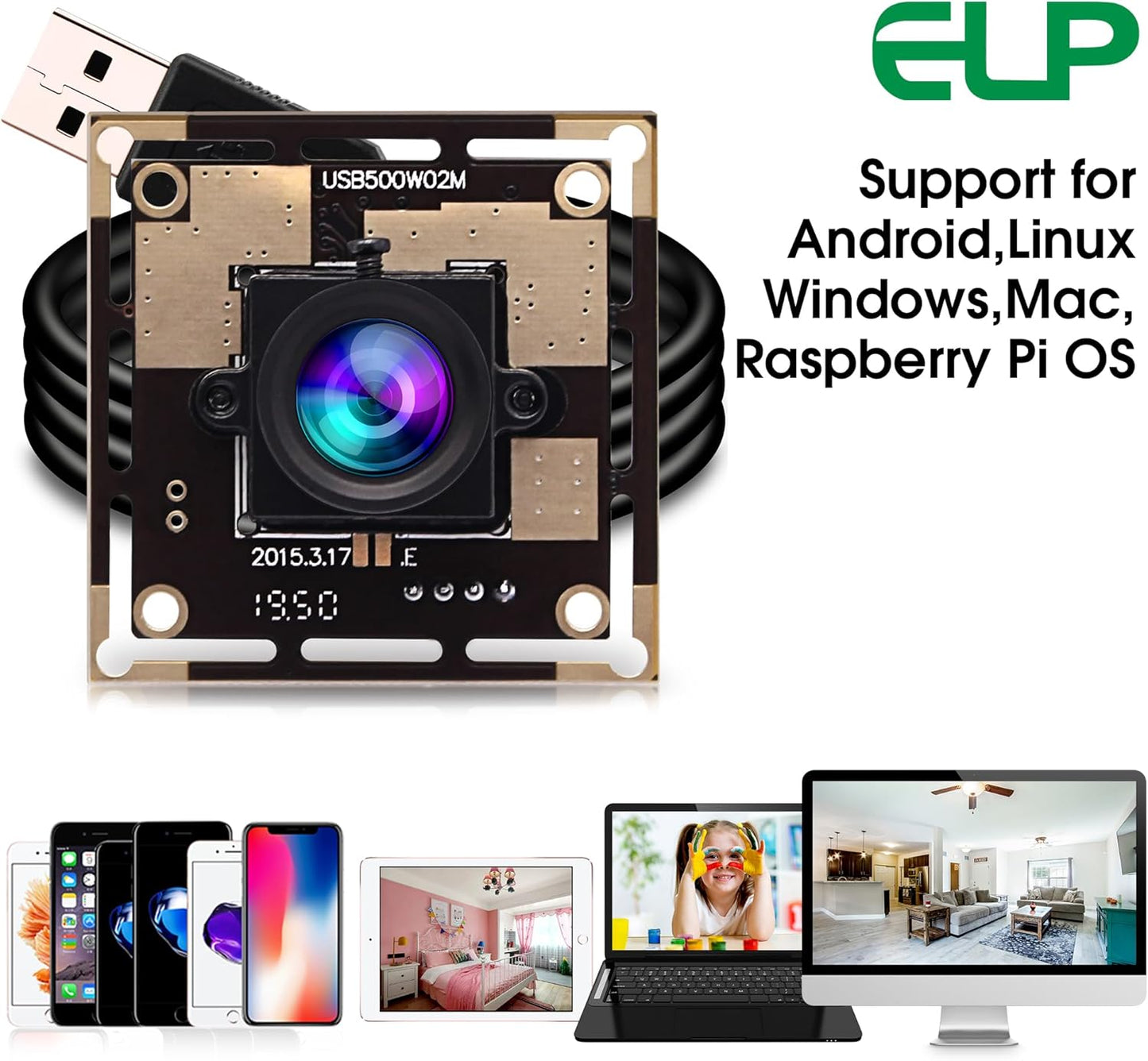

Wide Compatibility:
- WINDOWS 2000 / CHROME OS / LINUX / MAC OS / ANDROID / UBUNTU
- Multi-Platform Support
- YOUTUBE / ZOOM / AMCAP / FACETIME / SKYPE

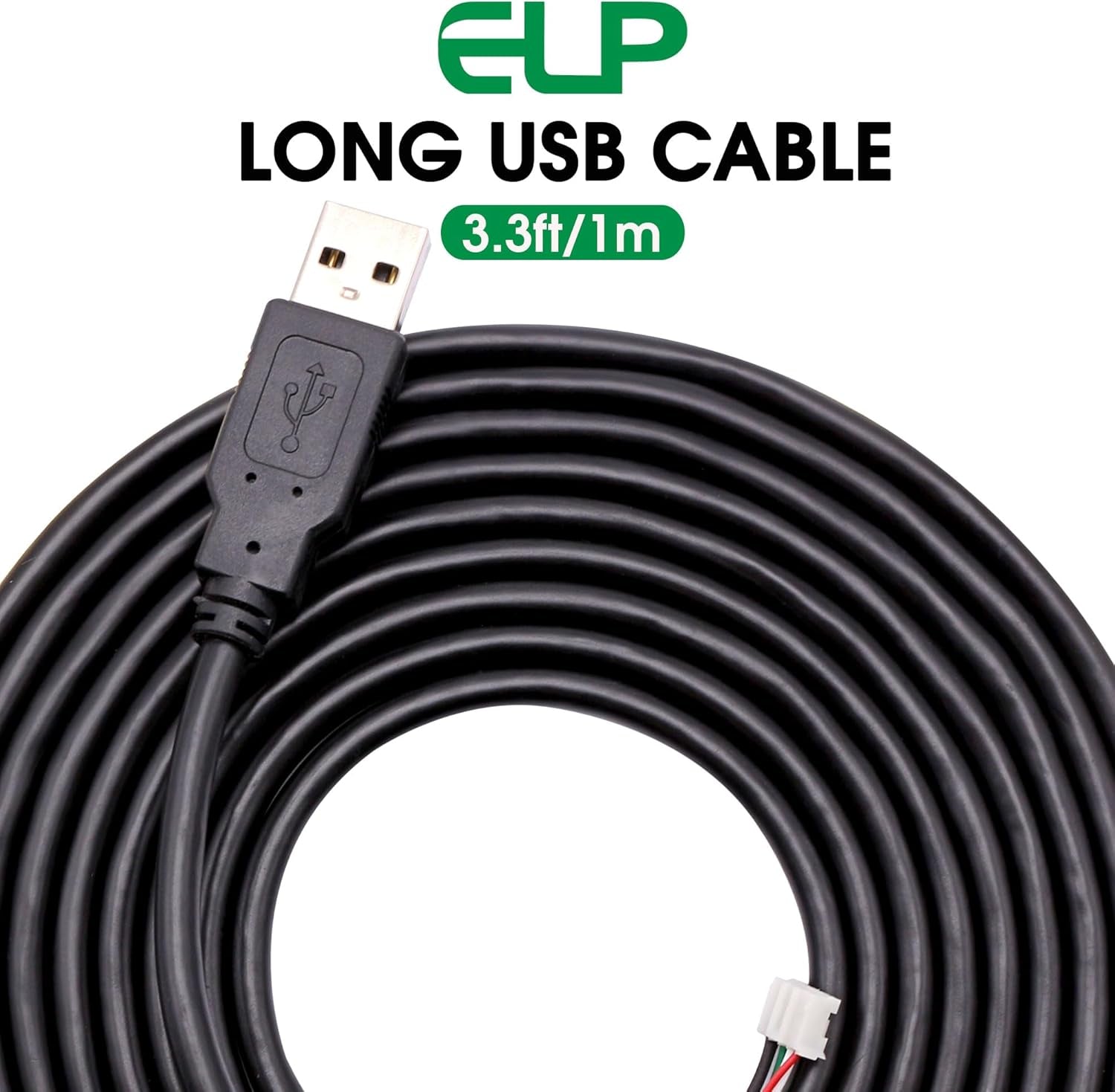

With 1m/3.3ft Cable for Computer, Laptop, PC
- 1Meter(approximately 40 inches) long cable with a small 4 pin connector that plugs into the camera board.
Small outline and thin profile for embedded machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc.

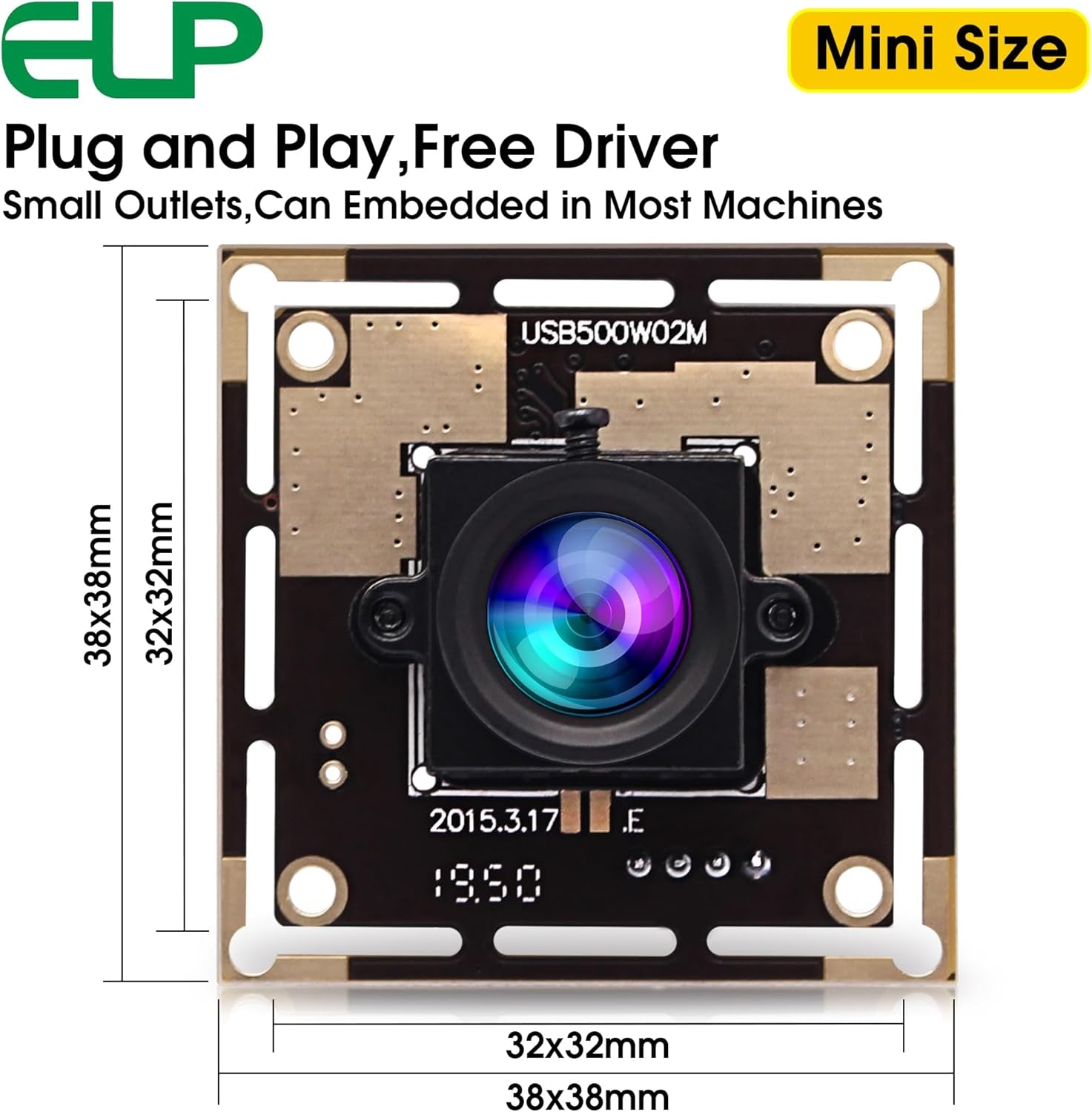

Mini 38mmx38mm/32*32mm camera board can be installed in most hidden and narrow position:

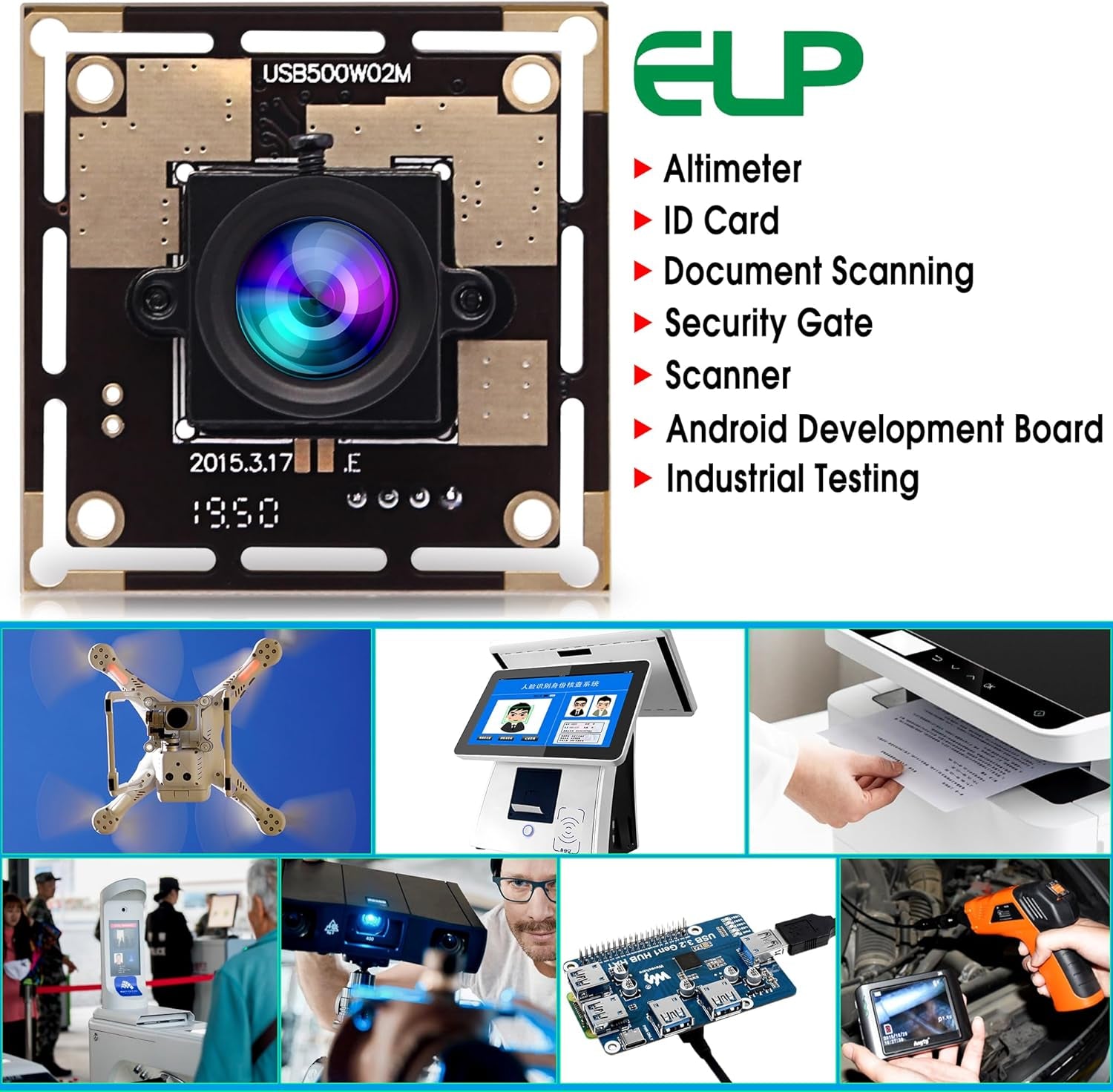

Applications:
- Bar Code QR Code Scan
- Document, Passport, Receipt Identification Scanning
- 3D Printer,3D Scanner
- Home Surveillance System
- Robotic Machine Vision
- Baby Camera
- Dashcam
